Type

Liquid-cooled, 4 valve, DOHC, single-cylinder

Capacity

398,15 cc

Bore

89 mm

Stroke

64 mm

Compression

12:1

Max Power EC

40 PS / 39.5 bhp (29.4 kW) @ 8,000 rpm

Max Power Horsepower

39,5 hp

Max Torque EC

37.5 Nm @ 6,500 rpm

System

Bosch electronic fuel injection with electronic throttle control

Exhaust

Stainless twin-skin header system with stainless steel silencer

Final Drive

X-ring chain

Clutch

Wet, multi-plate, slip

Gearbox

6 speed

Frame

Hybrid spine/perimeter, tubular steel, bolt-on rear subframe

Swingarm

Twin-sided, cast aluminium alloy

Front Wheel

Cast aluminium alloy 10 spoke, 19 x 2.5 in

Rear Wheel

Cast aluminium alloy 10 spoke, 17 x 3.5 in

Front Tyre

100/90-19

Rear Tyre

140/80-17

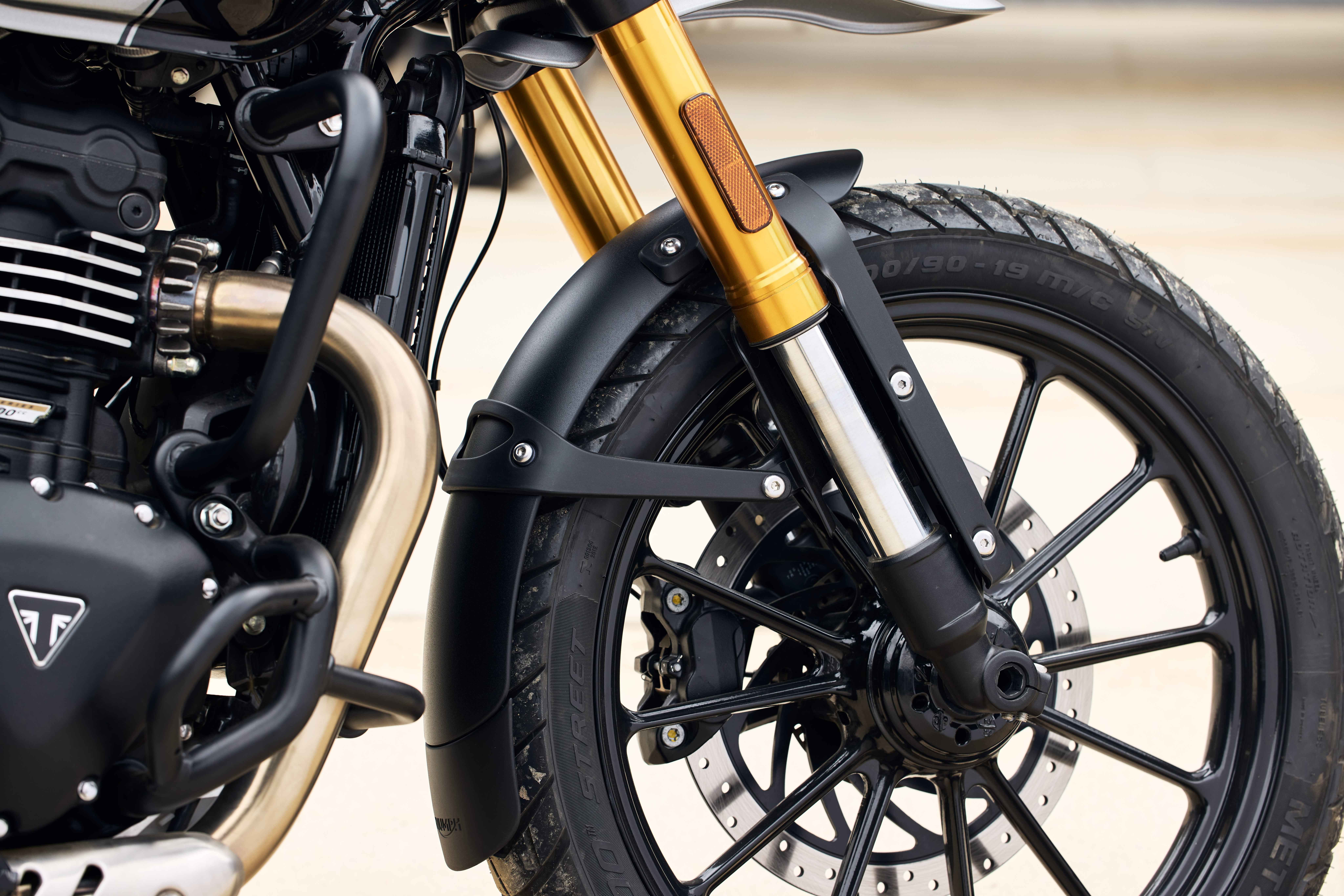

Front Suspension

43mm upside down Big Piston forks. 150mm wheel travel

Rear Suspension

Gas monoshock RSU with external reservoir and pre-load adjustment. 150mm wheel travel

Front Brakes

320mm fixed disc, four-piston radial caliper, ABS

Rear Brakes

230mm fixed disc, ByBreTM single piston floating caliper, ABS

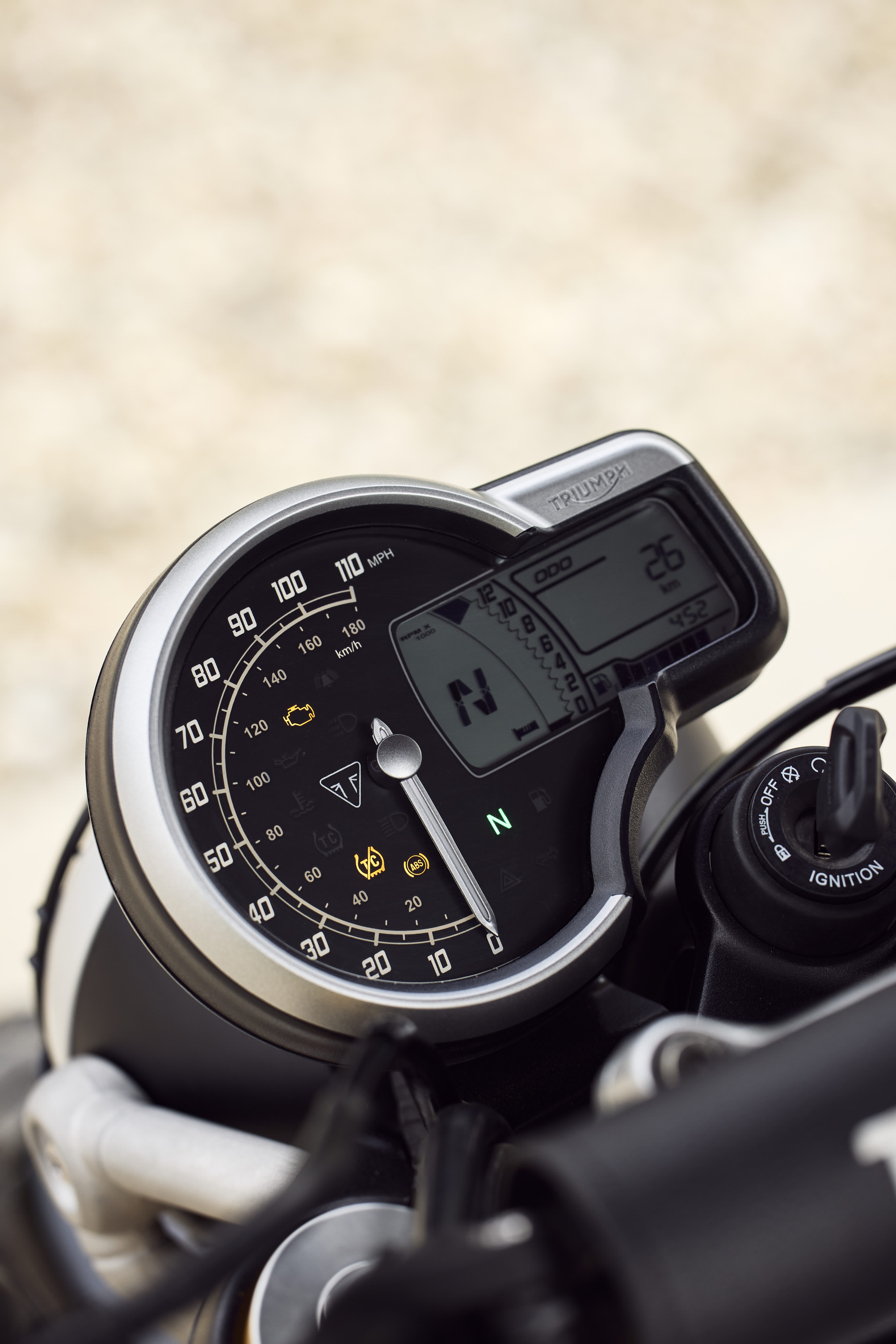

Instrument Display and Functions

Analogue speedometer with integrated multi-function LCD screen

Width Handlebars

901 mm mm

Height Without Mirror

1169 mm mm

Seat Height

835 mm

Wheelbase

1418 mm mm

Rake

23,2 °

Trail

108 mm

Tank Capacity

13 L

Wet Weight

179 kg

Fuel Consumption

3.5L/100km (80.7 mpg)

Kilometers Per Liter

34,3 km/L

CO2 Figures

83.8 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

Service Interval

10,000 miles (16,000km)/12 months (whichever comes first)
