Type

Liquid-cooled, 4 valve, DOHC, single-cylinder

Capacity

398 cc

Bore

89 mm

Stroke

64 mm

Compression

12:1

Max Power EC

40 PS / 39.5 bhp (29.4 kW) @ 8,000 rpm

Max Power Horsepower

39,5 hp

Max Torque EC

37.5 Nm @ 6,500 rpm

System

Bosch electronic fuel injection with electronic throttle control

Exhaust

Stainless twin-skin header system with stainless steel silencer

Final Drive

X-ring chain

Clutch

Wet, multi-plate, slip

Gearbox

6

Frame

Hybrid spine/perimeter, tubular steel, bolt-on rear subframe

Swingarm

Twin-sided, cast aluminium alloy

Front Wheel

Cast aluminium alloy 10 spoke, 17 x 3 in

Rear Wheel

Cast aluminium alloy 10 spoke, 17 x 4 in

Front Tyre

110/70 R17

Rear Tyre

150/60 R17

Front Suspension

43mm upside down Big Piston forks. 140mm wheel travel

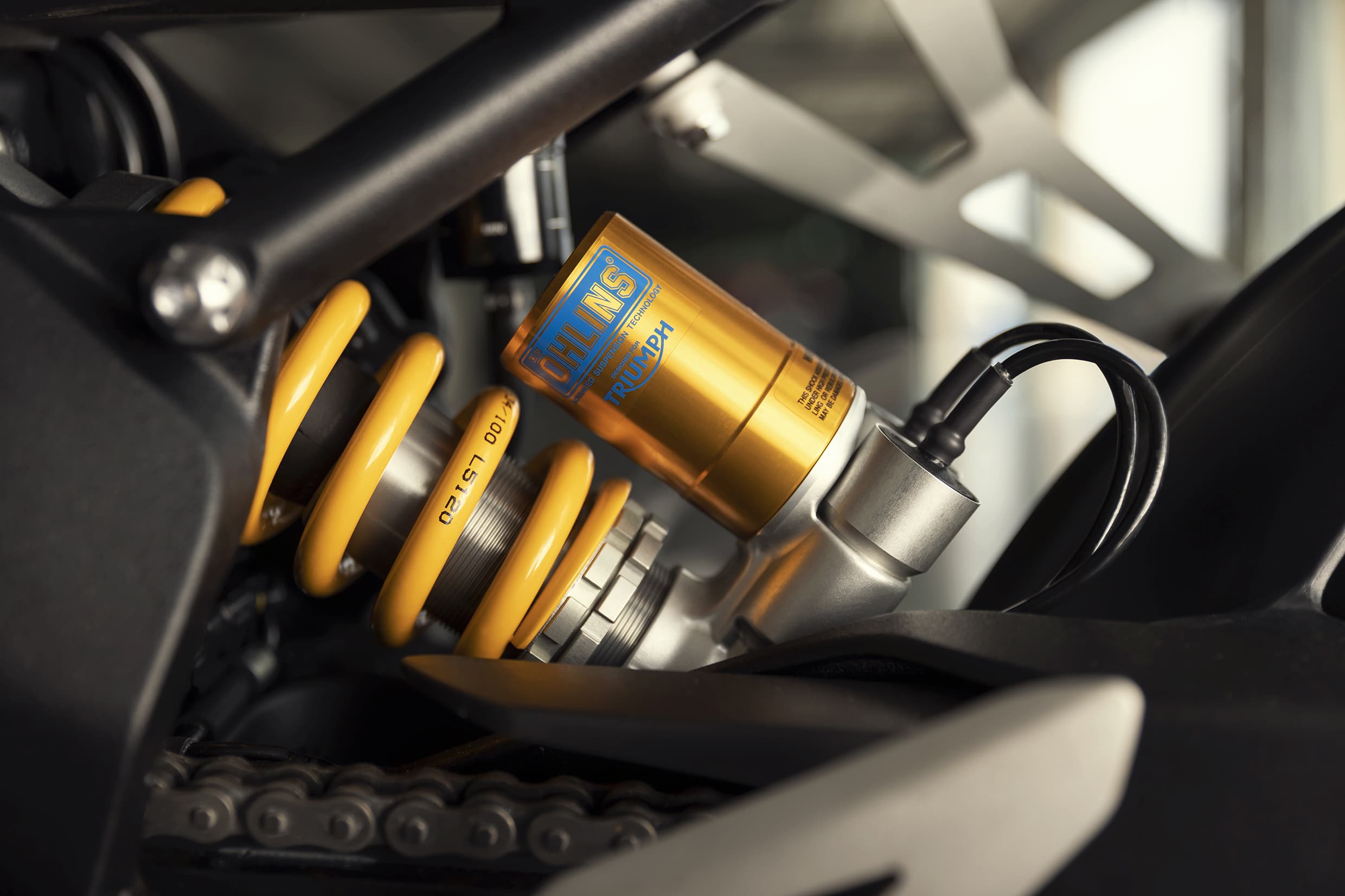

Rear Suspension

Gas monoshock RSU with external reservoir and pre-load adjustment. 130mm wheel travel

Front Brakes

300mm fixed disc, four-piston radial caliper, ABS

Rear Brakes

230mm fixed disc, floating caliper, ABS

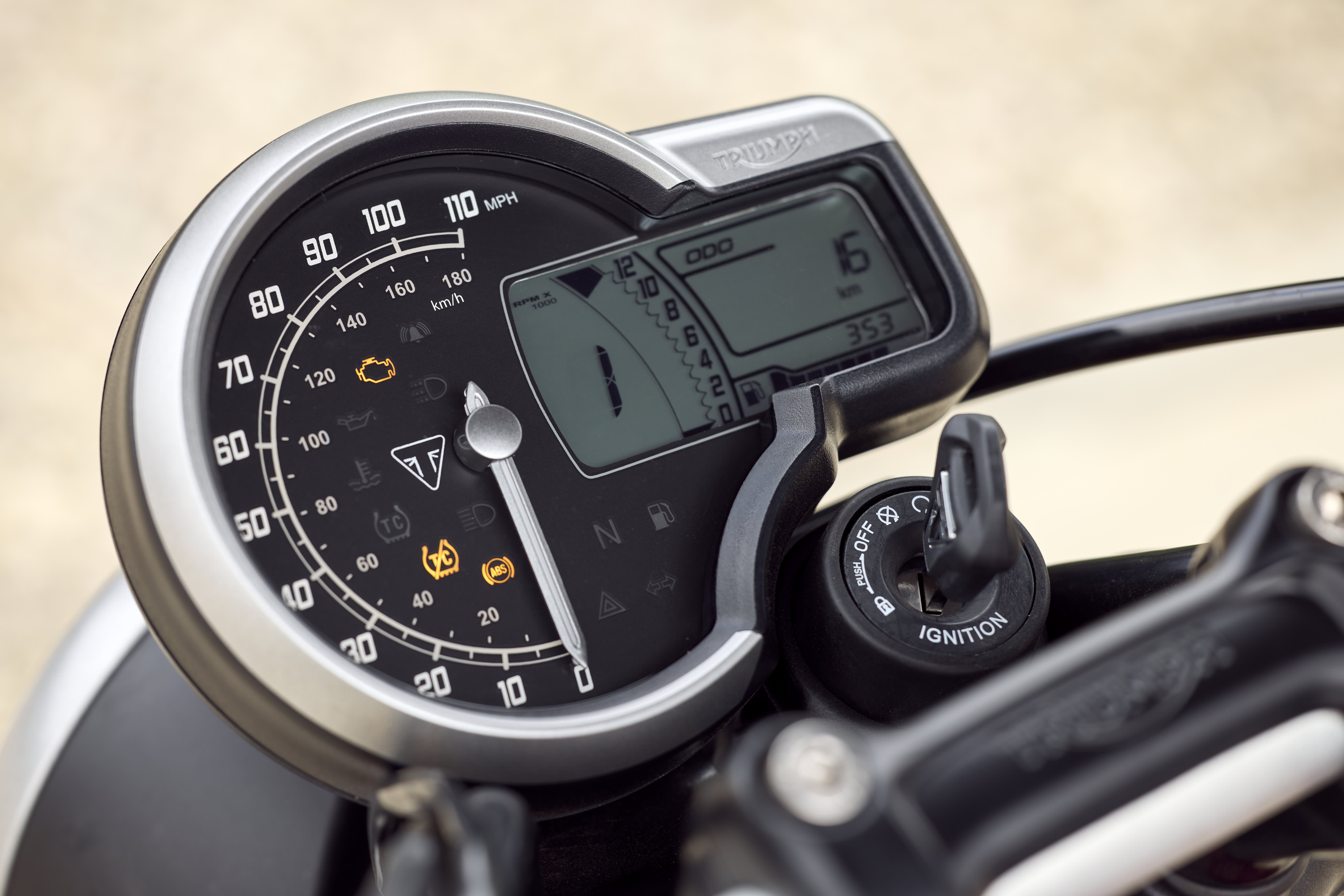

Instrument Display and Functions

Analogue speedometer with integrated multi-function LCD screen

Width Handlebars

814 mm mm

Height Without Mirror

1084 mm mm

Seat Height

790 mm

Wheelbase

1377 mm mm

Rake

24,6 °

Trail

102 mm

Tank Capacity

13 L

Wet Weight

170 kg

Fuel Consumption

3.5L/100km (80.7 mpg)

Kilometers Per Liter

34,5 km/L

CO2 Figures

83.8 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

Service Interval

10,000 miles (16,000km)/12 months (whichever comes first)
