Type

Liquid-cooled, 12 valve, DOHC, inline 3-cylinder

Capacity

765 cc

Bore

78 mm

Stroke

53,4 mm

Compression

13.25:1

Max Power EC

130 PS / 128.2 bhp (95.6 kW) @ 12,000 rpm

Max Power Horsepower

130 hp

Max Torque EC

80 Nm @ 9,500 rpm

Max Torque Newton

80 Nm

System

Multipoint sequential electronic fuel injection with electronic throttle control

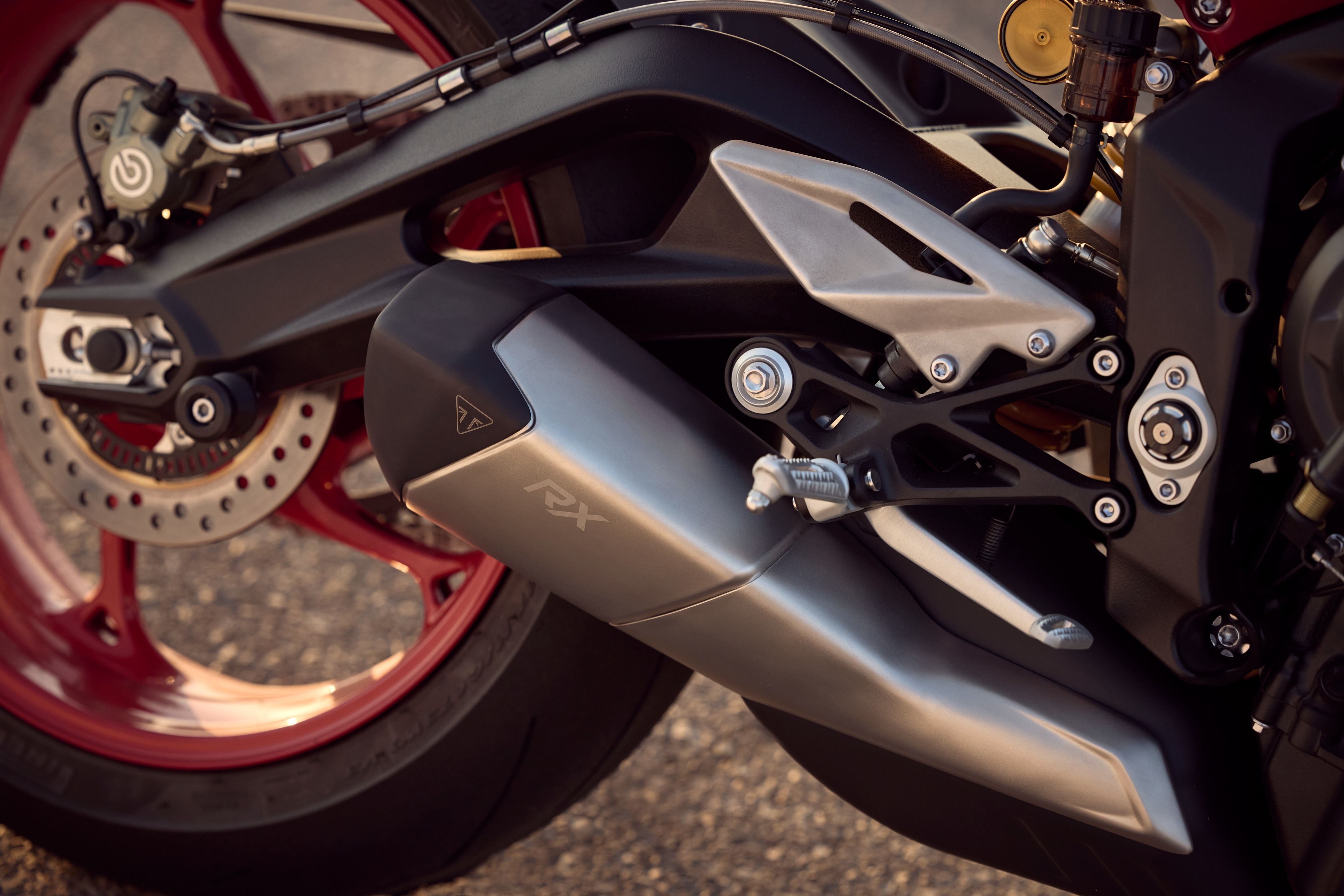

Exhaust

Stainless steel 3 into 1 header system with low single sided stainless steel silencer

Final Drive

X-ring chain

Clutch

Wet, multi-plate, slip and assist

Gearbox

6 speed

Frame

Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe

Swingarm

Twin-sided, cast aluminium alloy

Front Wheel

Cast aluminium alloy 5 spoke, 17 x 3.5 in

Rear Wheel

Cast aluminium alloy 5 spoke, 17 x 5.5 in

Front Tyre

120/70 ZR 17

Rear Tyre

190/55 ZR 17

Front Suspension

Showa 41 mm upside down Big Piston Forks (BPF), adjustable compression and rebound damping, and preload adjustment. 115mm wheel travel

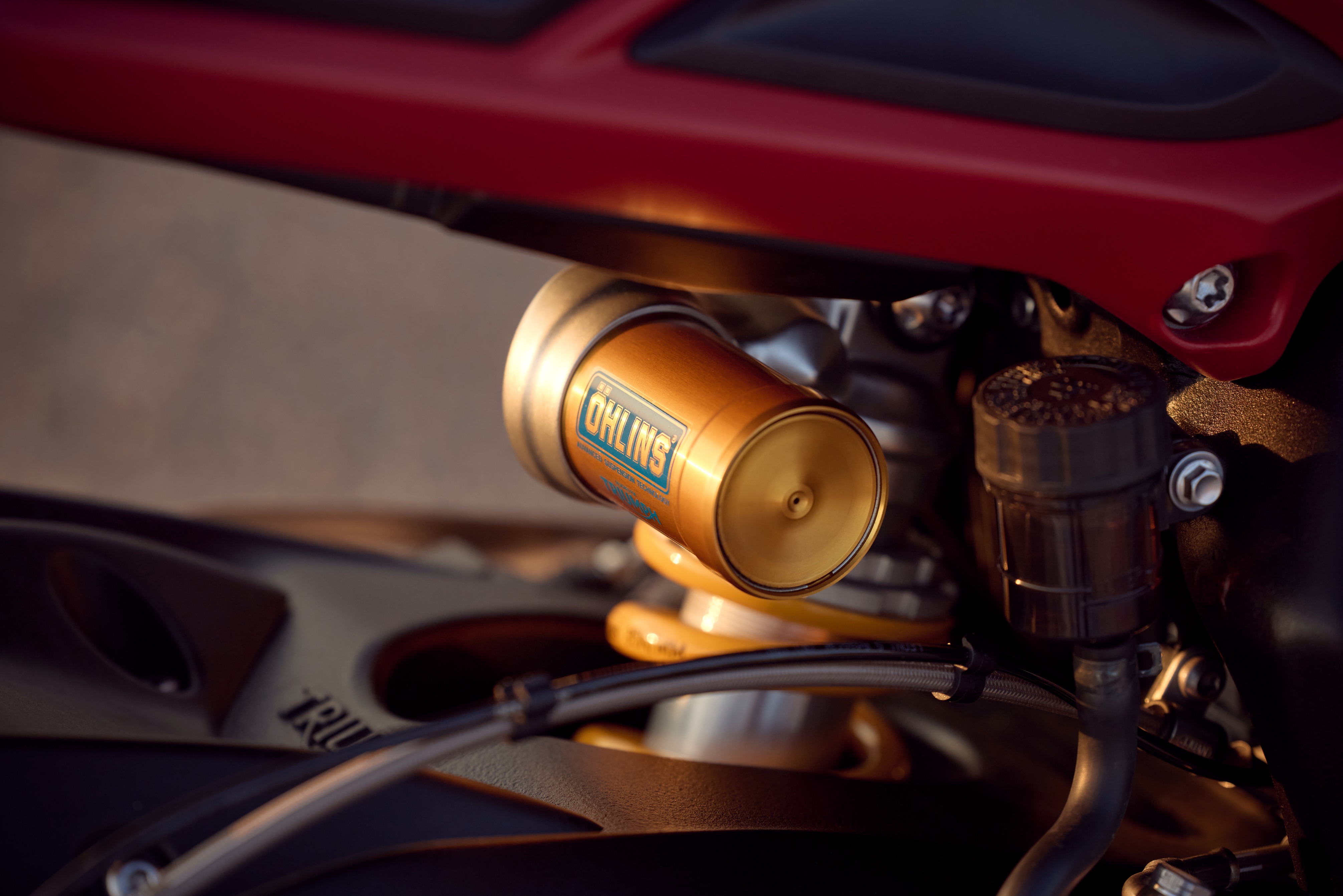

Rear Suspension

Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment. 131.2mm wheel travel

Front Brakes

Twin 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder

Rear Brakes

Single 220 mm disc, Brembo single piston caliper, OC-ABS

Instrument Display and Functions

Full colour 5" TFT instruments

Width Handlebars

792 mm mm

Height Without Mirror

1064 mm mm

Seat Height

836 mm

Wheelbase

1399 mm mm

Rake

23,2 °

Trail

96,9 mm

Tank Capacity

15 L

Wet Weight

188 kg

Fuel Consumption

52.8 mpg (5.4 litres / 100 km)

Kilometers Per Liter

22,5 km/L

CO2 Figures

120g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.

Service Interval

6,000 miles (10,000km)/12 months (whichever comes first)
